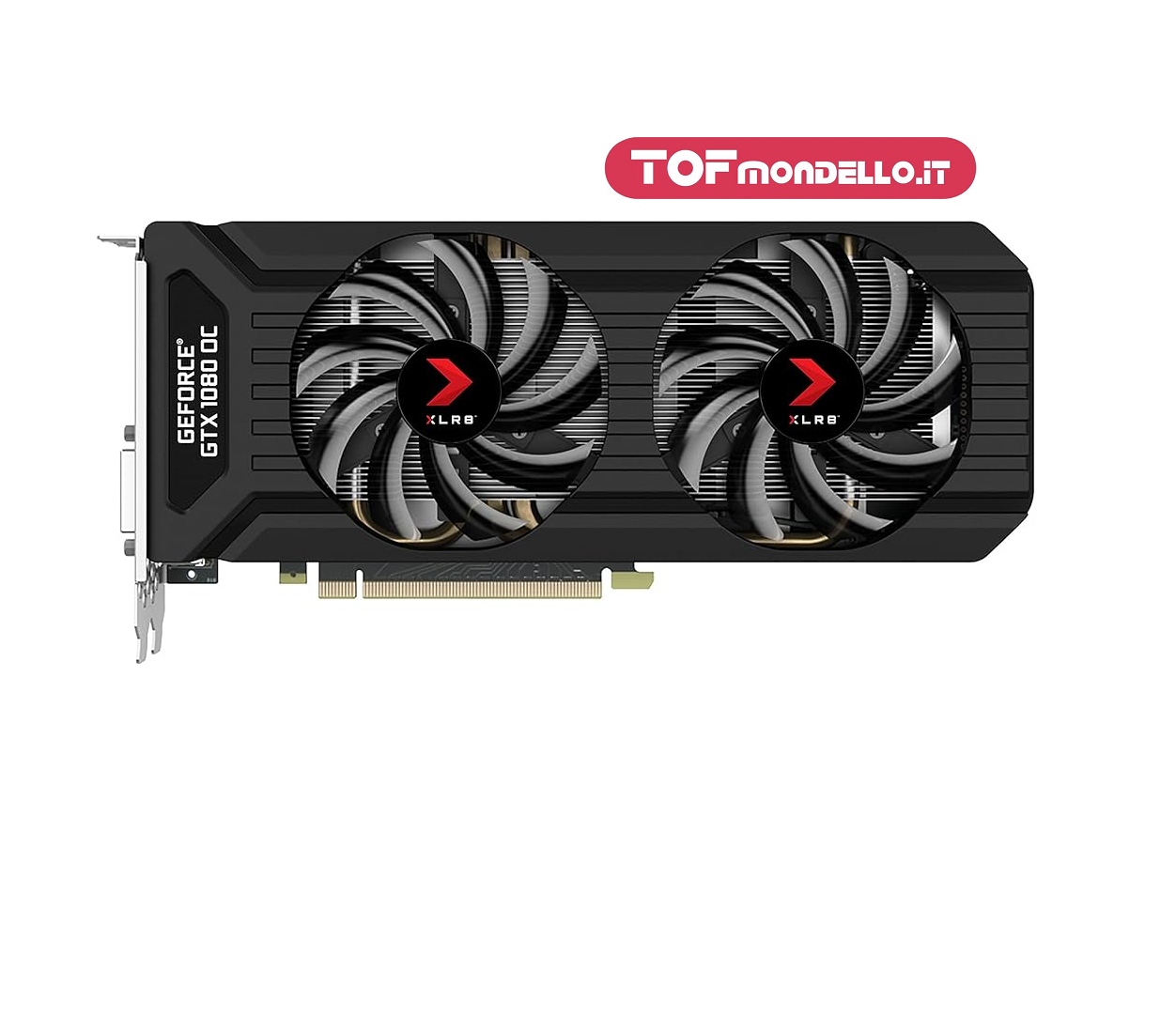

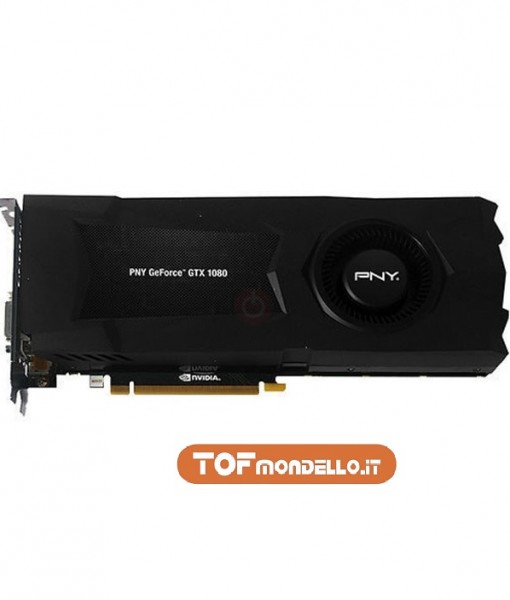

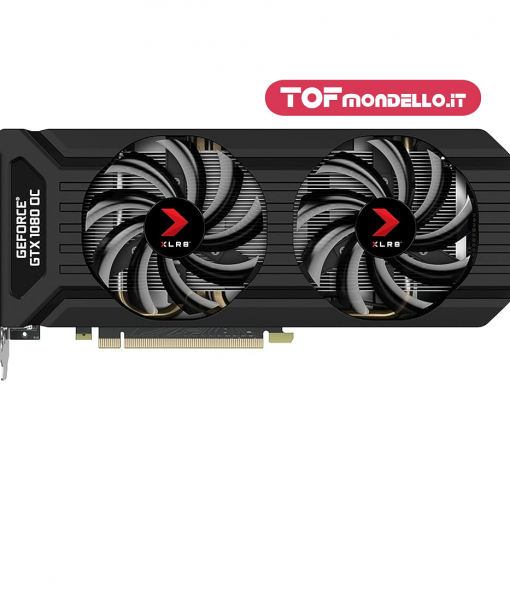

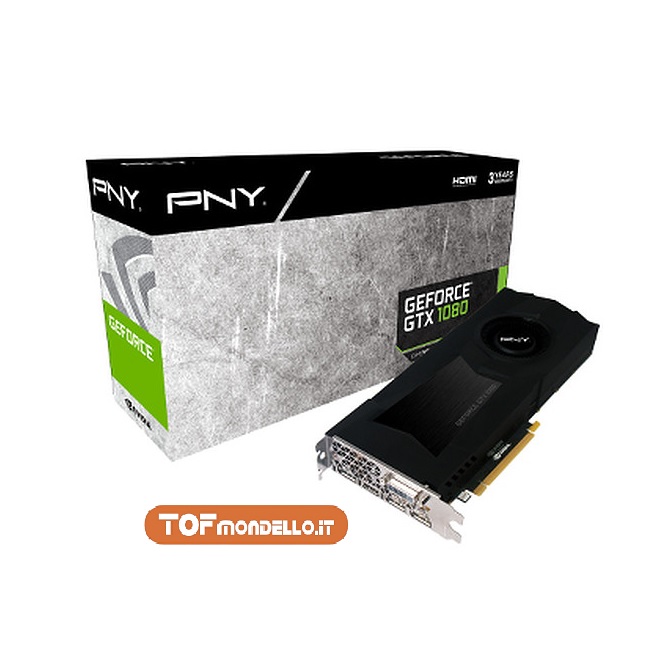

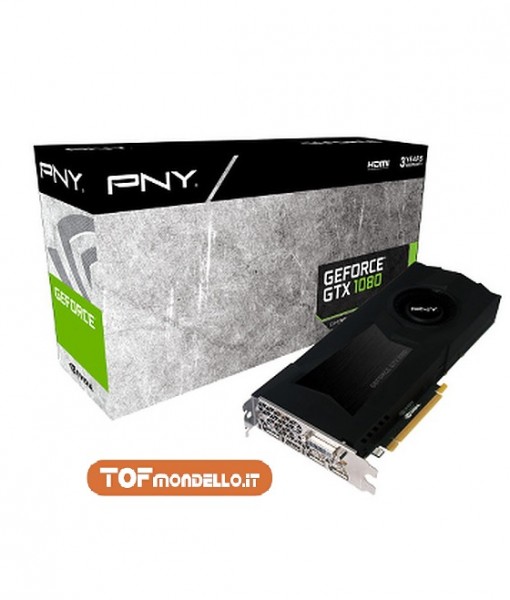

PNY GEFORCE GTX 1080

PNY GEFORCE GTX 1080 2

PNY GeForce GTX 1080

PNY GeForce GTX 1080 USATA

€170

Grado AA
Confezione Sì
8GB GDDR5 Memory
Garanzia 12 Mesi

Disponibile

Categoria: INFORMATICA

Descrizione

Graphics Processor

GPU Name: GP104

GPU Variant: GP104-400-A1

Architecture: Pascal

Foundry: TSMC

Process Size: 16 nm

Transistors: 7,200 million

Density: 22.9M / mm²

Die Size: 314 mm²

Chip Package: BGA-2150

Graphics Card

Release Date: May 27th, 2016

Generation: GeForce 10

Predecessor: GeForce 900

Successor: GeForce 20

Production: End-of-life

Bus Interface: PCIe 3.0 x16

Clock Speeds

Base Clock: 1607 MHz

Boost Clock: 1733 MHz

Memory Clock: 1251 MHz
10 Gbps effective

Memory

Memory Size: 8 GB

Memory Type: GDDR5X

Memory Bus: 256 bit

Bandwidth: 320.3 GB/s

Render Config

Shading Units: 2560

TMUs: 160

ROPs: 64

SM Count: 20

L1 Cache: 48 KB (per SM)

L2 Cache: 2 MB

Theoretical Performance

Pixel Rate: 110.9 GPixel/s

Texture Rate: 277.3 GTexel/s

FP16 (half): 138.6 GFLOPS (1:64)

FP32 (float): 8.873 TFLOPS

FP64 (double): 277.3 GFLOPS (1:32)

Board Design

Slot Width: Dual-slot

TDP: 180 W

Suggested PSU: 450 W

Outputs: 1x DVI
1x HDMI 2.0
3x DisplayPort 1.4a

Power Connectors: 1x 8-pin

Board Number: PG413 SKU 0

Graphics Features

DirectX: 12 (12_1)

OpenGL: 4.6

OpenCL: 3.0

Vulkan: 1.3

CUDA: 6.1

Shader Model: 6.7
